Radius is an all-in-one console system designed for small standalone or networked studios, where no more than eight faders are needed. Like all Axia® consoles, it’s easy to deploy: each Radius control surface is powered by a burly QOR.16 integrated console engine with DSP-powered mixing engine, analog and digital audio I/O, custom Ethernet switch and GPIO ports. The Radius surface connects to the QOR.16 engine with a single CANBus cable.
Radius includes 4 stereo Program buses — 3 dedicated Program, Audition and Utility mixing outputs; the fourth a stereo Utility bus for recording phone callers or other off-air bits. The fourth bus may also be used as an additional Program bus. Automatic mix-minus is provided on each fader, plus talkback functions, one-button off-air Record Mode, Show Profile instant recall of up to 4 pre-defined console “snapshots”, LED bar-graph program meters switchable between VU and PPM meter styles, high- resolution OLED option displays on each fader, and Studio and Control Room monitor controls. Radius can be placed on top of desk surfaces, mounted drop-in style, or rack-mounted using included hardware.
Radius AoIP Mixing Console Features
8 faders, each with instant access to any source. Assign any type of source to any channel with a simple twist of the Options knob.
Proven surface-and-core architecture separates control from mixing processes. No audio passes directly through Radius; all mixing and processing is performed in the QOR.16 Integrated Console Engine – so studio “accidents” don’t turn into off-air events.
Four main stereo outputs (Program-1 through Program-4).
Software upgrade for QOR.16 integrated console makes Radius AoIP console AES67-compliant.
Built-in three-band per-source EQ.
Alpha-numeric OLED displays below each fader always show the current audio source, and, when the Options knob is pressed, offer fast adjustment of fader gain trim, voice EQ, pan and balance, phase correction and other features without panel clutter or intimidating controls.
Channel-input confidence meters assure talent of audio presence before taking sources to air.
Each fader’s context-sensitive Soft key can be used to activate talkback, start delivery system events, or perform other special functions.
Every fader has a stereo Preview (“cue”) function, with a unique interlock system for fast cuing of multiple sources.
Smooth, long-life 100mm. conductive-plastic faders resist dirt and contamination.
Reconfigurable CR monitor section with direct-selection of Program buses and reassignable buttons that allow instant monitoring of external sources.
An additional monitor section provides monitor volume, source selection and talkback controls for an associated air studio.
Flexible talkback system lets board op talk to studio guests or any Phone or Codec source with an associated backfeed.
Up to 8 automatic mix-minuses may be used simultaneously for phones, remote talent, etc.
Unique Record Mode enables one-button setup of record mixes for phone bits or off-air interviews.
Bright, readable bar-graph displays provide responsive, readable VU or PPM metering styles. Switchable displays allow metering any Program bus or monitor selection.
Meter-bridge display includes a precision event timer that may be operated manually or triggered by starting preselected sources, and a time-of-day clock that can be synchronized to network time using NTP.
Four custom Show Profile “snapshots” can be saved to instantly recall frequently-used console setups – useful to quickly prepare for interview segments, music-intensive programming, call-in talk shows, etc.
All functions can be accessed remotely for configuration, management and diagnostic purposes using any standard Web browser.
Radius surface is field-convertible to rack-mounted operation. Special faders provide smooth operation, yet hold their positions in vertical orientation.

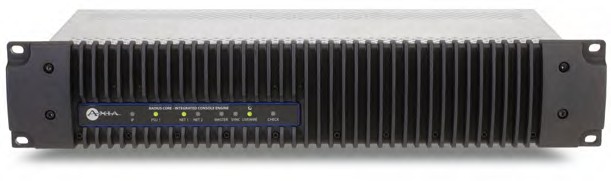

Easy-to-deploy QOR.16 integrated console engine includes console CPU and power supply, DSP mixing engine, custom Ethernet switch with 6 Livewire® ports and 2 Gigabit ports for studio networking, 8 analog inputs and 4 analog outputs, 1 AES input and 1 AES output, 2 Mic inputs with switchable Phantom power, and 4 GPIO ports for machine control. I/O can be expanded using Axia xNodes.
Integrated zero-configuration network switch is custom-designed for broadcasting — no switch setup required.
QOR.16’s built-in Ethernet switch supports Simple Networking, allowing up to 4 iQ consoles to be daisy-chained without the need for a separate core switch.
Fan-free, convection-cooled power supply for noiseless in-studio operation.
Configurable network gateway allows loading of networked as well as local audio sources while simultaneously exporting audio streams for network use elsewhere. Gateway can be configured for 12-in, 4-out or 8-in, 8-out modes.
Radius AoIP Mixing Console In Depth
Spend Less. Get More.
“You get what you pay for,” as the saying goes. But sometimes, you actually get less. For example, you’ve probably noticed how “affordable” radio consoles are usually missing important features and capabilities. Trying to do a radio show with a board like that is like trying to open a can with a spoon: you might succeed eventually, but you sure won’t enjoy it.
At Axia, we’re broadcasters too, through and through. And we believe that having a reasonable equipment budget shouldn’t mean being forced to settle for something less than you deserve. We’ve decided you should get more than you pay for — much more. Which is why we designed Radius, the IP console that proves you can have your cake and eat it, too. While some console companies try to see how much they can take out of a console to meet a price point, Radius was designed in exactly the opposite way: we challenged ourselves to see just how many features and capabilities we could pack in, while still meeting your budget requirements.
Radius is the easiest AoIP console ever. Just connect the 8-fader mixing surface to the QOR.16 integrated console engine, plug in your sources and power, and you’re ready to make great radio. Because it’s so compact, Radius is the perfect standalone console, but Gigabit ports on its QOR.16 integrated console engine let you connect it to other studios too. Radius’ network gateway lets you load up to 12 audio sources from anywhere in your Livewire network, while simultaneously sending your locally produced streams back out to the net.

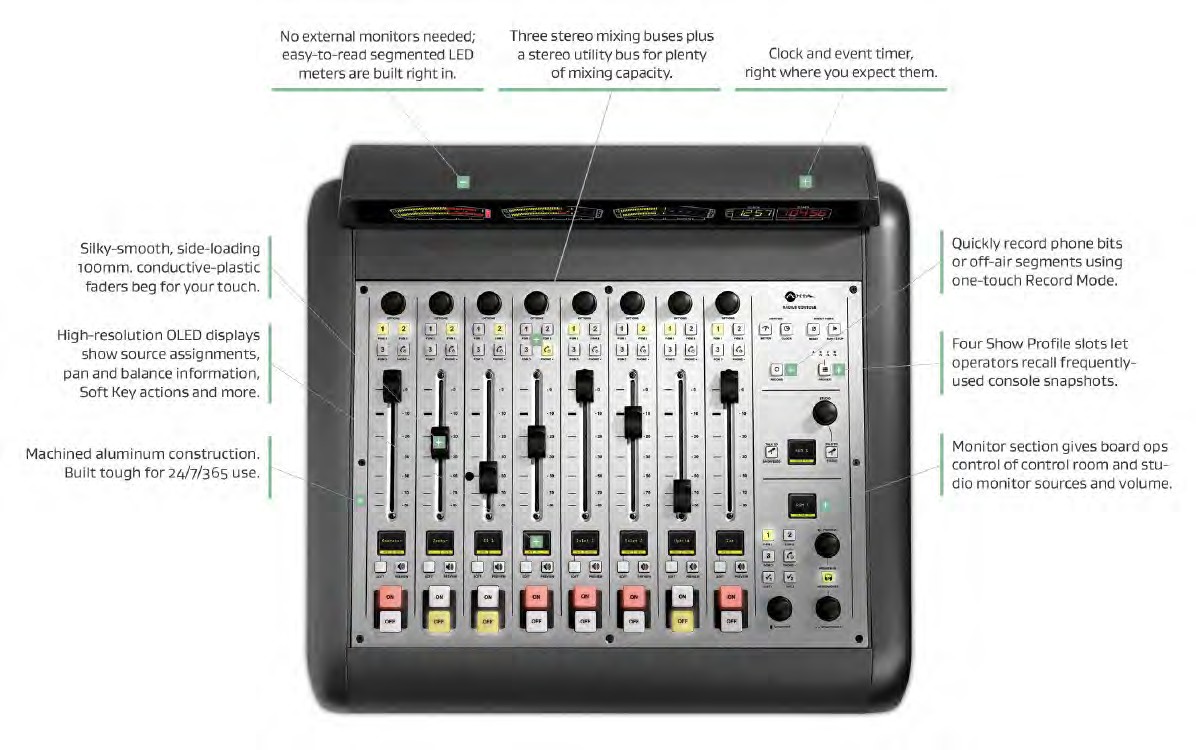

Radius is loaded with features you’d expect to pay much more for. You’ll find three stereo Program buses, and a stereo utility bus that can be used for recording phone calls and off-air bits (or as a fourth Program bus). Automatic mix-minus for every phone caller and remote talent means never having to fiddle with making a manual backfeed. Bright multi-segment LED meters are switchable between VU and PPM styles. High-resolution OLED displays for each fader show source assignments, audio options and more. And Show Profiles that you can program to instantly load talent’s most frequently-used console configurations.
Like all Axia consoles, Radius is built for long-lasting reliability, ready to stand up to anything your operators throw at it, with an EM-tight steel frame, anodized machined aluminum work surface with etched markings that can never rub off, silky-smooth conductive-plastic faders, aircraft-quality switches and rotary controls, and integrated clock/event timer. There are even monitor source and volume controls for an associated studio — something you’d expect to find only in bigger consoles costing much more.
There are also OLED displays on every fader that provide source assignments, pan & balance settings, fader options and more — which means no additional computer monitors or mice to clutter up your studio. The display can also work with the Soft Keys just below to trigger GPIO events, step automation events, and adjust source input options.
Like its big brother, iQ, Radius is designed to sit atop any solid surface — no templates to decipher or countertops to cut (unless you really want to). A single cable connects it to the QOR.16 mixing engine. Also like iQ, Radius is built with premium materials like a machined aluminum frame construction, LED button lighting, long-life conductive-plastic faders, and anodized – not painted! – surfaces with laser- etched markings that can’t ever rub off.
Audio I/O, GPIO, console CPU, super-duty power supply, and even a network switch are all built into the QOR.16. Just plug in your mics, CD players, codecs, profanity delays, whatever. There are 16 audio I/O ports: two Mic inputs with switchable Phantom power, eight analog inputs and four analog outputs, and one AES/EBU input and output. QOR.16 also has four GPIO logic ports for machine control of studio peripherals, six 100BASE-T ports for Livewire devices, and two Gigabit ports with SFP for connection to the outside world. For more I/O, just add Axia xNode interfaces. And you can daisy chain as many as four QOR engines without the need for an external Ethernet switch, making installation even more economical.
Radius AoIP Mixing Console Specifications
Microphone Inputs: 2x balanced XLR-F, with selectable Phantom power
Analog Inputs: 8x RJ-45, StudioHub+ standard.
Analog Outputs: 4x RJ-45, StudioHub+ standard.
AES/EBU Inputs: 1x RJ-45, StudioHub+ standard.
AES/EBU Outputs: 1x RJ-45, StudioHub+ standard.
GPIO: 4x DB-15
4x 100BASE-T with PoE, RJ-45
2x 100BASE-T, RJ-45
2x 1000BASE-T, RJ-45
2x Gigabit, SFP (Small Form Pluggable)
Console Frame Connections: 1x, 6-pin “latch and lock” style
Accessory Connections: 1x, 6-pin “latch and lock” style
Source Impedance: 150 Ohms
Input Impedance: 4 k Ohms minimum, balanced
Nominal Level Range: Adjustable, -75 dBu to -20 dBu
Input Headroom: >20 dB above nominal input
Output Level: +4 dBu, nominal
Analog Line Inputs
Input Impedance: 20 k Ohms
Nominal Level Range: Selectable, +4 dBu or -10dBv
Input Headroom: 20 dB above nominal input
Analog Line Outputs
Output Source Impedance: <50 Ohms balanced
Output Load Impedance: 600 Ohms, minimum
Nominal Output Level: +4 dBu
Maximum Output Level: +24 dBu
Digital Audio Inputs And Outputs
Reference Level: +4 dBu (-20 dB FSD)
Impedance: 110 Ohm, balanced (XLR)
Signal Format: AES-3 (AES/EBU)
AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 20 kHz to 216kHz input sample rate capable.
AES-3 Output Compliance: 24-bit
Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm
Mic Pre Input to Analog Line Output: <0.005%, 1 kHz, -38 dBu input, +18 dBu output
Analog Input to Analog Output: <0.008%, 1 kHz, +18 dBu input, +18 dBu output
Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, +18 dBu output
Crosstalk Isolation, Stereo Separation And CMRR
Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kH
Microphone channel to channel isolation: 80 dB isolation minimum, 20 Hz to 20 kHz
Analog Line Stereo separation: 85 dB isolation minimum, 20Hz to 20 kHz
Analog Line Input CMRR: >50 dB, 20 Hz to 20 kHz
Microphone Input CMRR: >50 dB, 20 Hz to 20 kHz
Mic Equalizer (applicable to up to 6 faders)
Frequency Bands: 20Hz to 320Hz, 125Hz to 2KHz, 1.25KHz to 20KHz.
Cut/Boost range on each band: -25dB to +15dB.
Q-factor: Automatic - bandwidth varies based on amount of cut or boost.
Power Supply AC Input, QOR.16 with Radius Console
Auto-sensing supply, 100VAC to 240VAC, 50 Hz to 60 Hz, IEC receptacle, internal fuse
Power consumption: 100 Watts
-10 degrees C to +40 degrees C, <90% humidity, no condensation
20.5” x 19” x 4.5” (desktop to meter bridge)
North America: FCC and CE tested and compliant, power supply is UL approved.
Europe: Complies with the European Union Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by Commission Decisions 2005/618/EC, 2005/717/ EC, 2005/747/EC (RoHS Directive), and WEEE.
What is the length of the CANBus cable for iQ and Radius?
The supplied CANBus cable is 20 feet (6.1 meters). This is the maximum recommended length.
If I use an Axia audio node to add more mic inputs than the QOR has, can I EQ those as well?
Yes, up to eight voice audio sources can be EQ'd, whether they're attached to the QOR or another Node.
I understand that the QOR engine has a "gateway" to the rest of the Livewire network. If I connect an iQ6 telephone hybrid to it, do I "consume" two of those inputs and outputs?
Yes. There are two operating modes for the QOR's gateway: 12 inputs / 4 outputs, and 8 inputs / 8 outputs. Connecting an iQ6 to your console will consume two inputs and outputs. (See elsewhere in the FAQ section for more about the QOR's Livewire gateway.)
Can my console apply equalization to voice channels?
Yes, you can EQ up to eight audio sources for mics, codecs, or other "voice-type" inputs.
