D*AP4 VAP - 2 Channel Voice Audio Processor Overview
Aimed at applications including radio broadcast, TV voice over and audio post production, the D*AP4 VAP is designed to ensure that vocal quality and accuracy is always maintained at its best from program to program and day to day.
The D*AP4 VAP features a two channel voice signal path and separate stereo program path for either standalone voice processing, or to provide automatic or manual integration of voice and program signals. An optional microphone pre-amp allows direct input to the dedicated voice path to maintain complete control of the overall voice presentation.
D*AP4 VAP - 2 Channel Voice Audio Processor Features
-
Dual mono or stereo voice channel configuration
-
2 channel program path in addition to voice channels
-
Algorithms specialized for voice processing
-
Sophisticated user profile management
-
De-Esser
-
5 band Parametric EQ and Spectral SignatureTM dynamic EQ
-
Dynamics with upward/downward compressor and expander/gate
-
Voice leveler
-
Voice Over functionality
-
True peak limiting
-
Optional Level Magic loudness management compliant with all current standards and recommendations
-
Optional loudness logging software (J*AM)

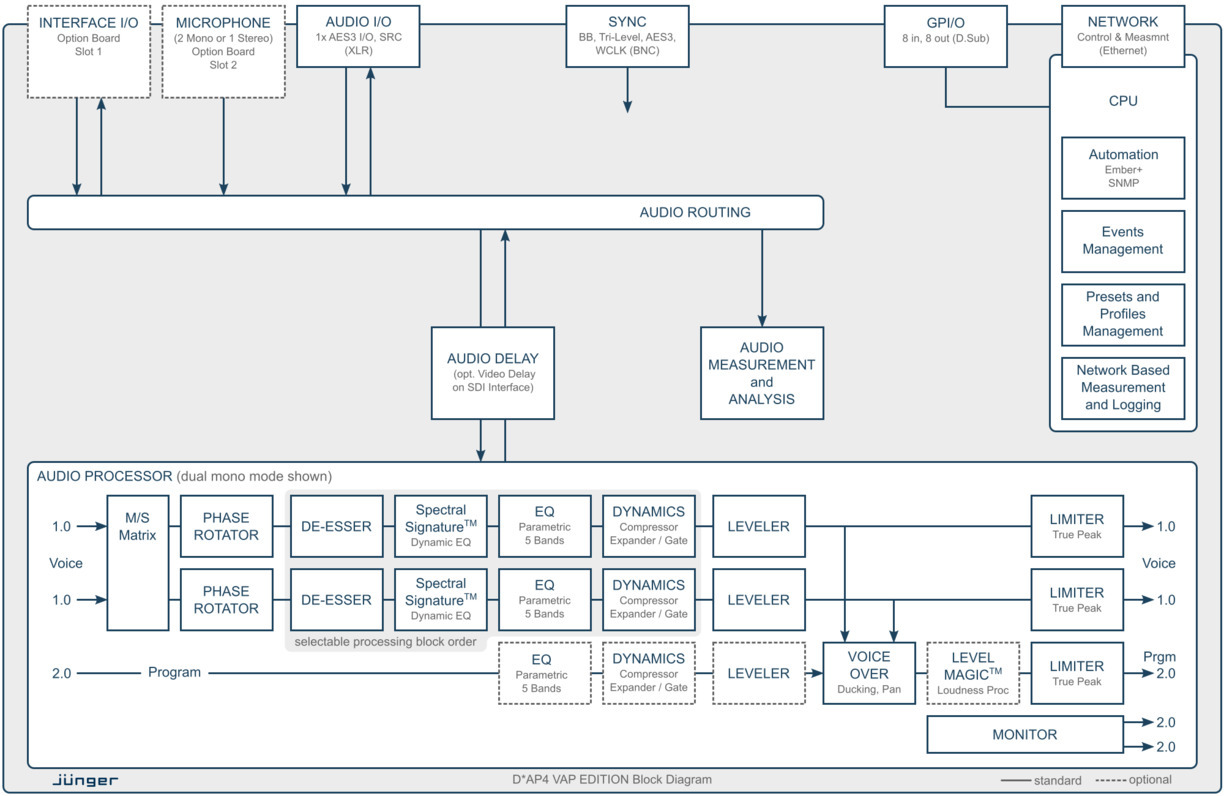

D*AP4 VAP EDITION Processing Block Diagram
D*AP4 VAP - 2 Channel Voice Audio Processor In Depth
Mid/Side Matrix
As a creative tool, the M/S Matrix uses two mics placed closely together to capture and produce variable width stereo recordings.
Phase Rotator
The Phase Rotator automatically detects imbalanced audio waveforms and restores symmetry to prevent transients that may unnecessarily trigger downstream processing.
De-Esser
The De-Esser greatly reduces the effect of excessive sibilance from spoken voices.
Parametric and Dynamic EQ
A 5-band Parametric EQ is coupled with Spectral Signature dynamic equalizer, a powerful creative tool allowing adaptive control of spectral balance. Incoming audio is analyzed and its spectral structure is compared to a predetermined “reference” curve. This allows dynamic EQ corrections to be applied only if necessary to achieve a consistent sound image and tonal balance.
Dynamics
In addition to a traditional upward compressor, a threshold based downward compressor is also included. Both types adaptively adjust timing parameters based on the incoming audio structure. An expander/gate effectively removes low-level noise without introducing artifacts.
Voice Leveler
To assist in loudness based programming, a voice leveler can be used to pre-condition the voice component prior to combining it with the program element.
Voice Over
Voice Over provides seamless integration of voice and program content in situations such as continuity announcements or video description with automatic ducking.
Level Magic Loudness Management
Based on a unique multi-loop control principle, the optional Level Magic algorithm provides adaptive wideband loudness control with exceptionally high audio quality that is free of coloration, pumping, distortion or modulation effects. The optional J*AM software displays input v/s output levels and can log long term values to a destination folder anywhere on the network.
System Integration
All system parameters are remotely accessible allowing the unit to be integrated and remotely operated by broadcast control systems. An advanced built-in Event Management tool allows the remote loading of parameter presets either by hotkeys on the optional X*AP RM1 remote panel, by 8 onboard GPI/O’s or by network commands using the Ember+ control protocol. This makes it easy to assign individual settings to each user and re-call them instantly.
Web Configuration
A web interface allows easy and intuitive setup and configuration from anywhere in your network. On screen metering and measurements are available for easy reference.
Mobile User Interface
A dedicated “mobile” UI is tailored specifically for smaller displays such as tablets or smartphones and offers fast access to user profiles and commonly required functions such as Cough Cut and Voice Over.
Interfaces and System Security
Audio I/O’s range from on board native AES/EBU to optional 3G SDI including video delay, MADI, Dante® audio over IP, analog and high quality mic pre-amps. Power fail bypass relays are fitted as standard and with dual redundant PSU’s and SNMP integration, the unit ensures maximum operational safety and peace of mind for today’s critical 24/7 radio and TV broadcast or audio production facilities.
The D*AP8 MAP user interface combines loudness and dialnorm measurement, metadata emulation and setup and monitor control on one web page. It is optimized for mouse or touch operation and can also be used as a day-to-day interface, for example on a tablet computer. This significantly simplifies workflows, especially for those familiar with Dolby®'s discontinued DP570 Multichannel Audio Tool.

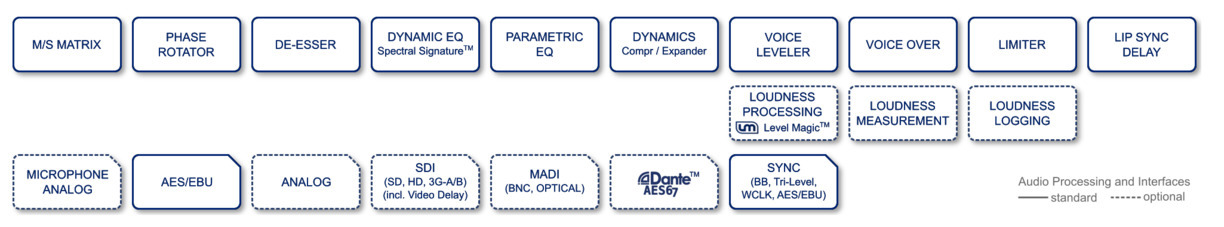

D*AP4 VAP EDITION Feature Set
D*AP4 VAP - 2 Channel Voice Audio Processor Specifications
-
On board interfaces: 4x AES/EBU I/O, Sync in, Sync out, Metadata I/O, 8 GPI/O
-
I/O modularity via 2 interface slots
-
Ethernet connectivity for set up and control via web browser
-
External control via network or GPI/O’s
-
Power fail bypass relays
-
19”, 1RU device, redundant PSU
